Johnson Hardware 200RD for Bifold Doors

The 200RD hardware for bifold doors is identical in the parts to the 200FD except it is designed for multiple sets of bifold doors. The 200RD series is a commercial grade track hardware for interior doors up to 75 lbs each and up to 36" in width and 108" in height. This hardware allows for openings to have up to 6 interior doors hinged together for a total of 12 interior doors within the opening.
Maximum Door Width:    36"
Maximum Door Height:    108"
Maximum Door Weight:    75 lbs.
Maximum Number of Doors:    12 - 6 folding left and 6 folding right

Click here for installation instructions for 200RD hardware for bifold doors

The 200RD series hardware for multiple bifold doors comes as 2 different sets. Set A attaches to the outer sets of bifold doors that mount to the jamb. Set B attaches to the inner bifold doors.
Set A    Set B

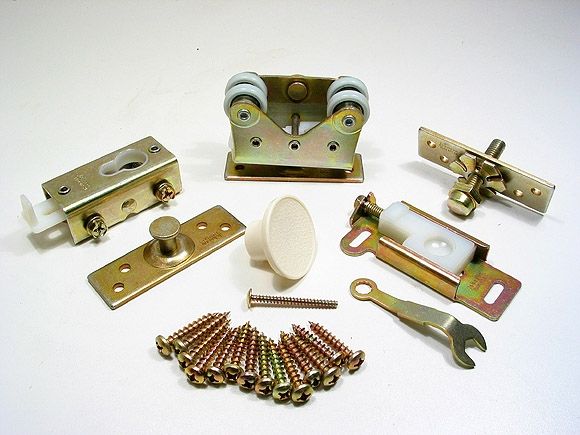

Set A attaches to the outer sets of bifold doors that are mounted to the jamb.

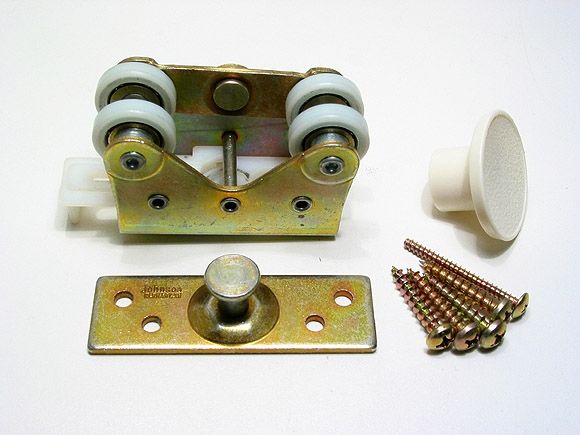

   Set B attaches to the those sets of bifold doors that are not mounted to the jamb.

Set A of the 200rd series hardware for multiple bifold doors    Set B of the 200rd series hardware for multiple bifold doors
      Set A    Set B
What is included in set A of 200rd bifold door hardware    What is included in set B of 200rd bifold door hardware
      Set A    Set B

Photos courtesy of Johnson Hardware
